Metal Door Frame Forming Machine Steel Door Frame Production Line
A metal door frame forming machine is a specialized piece of equipment designed to produce metal door frames from sheet metal, such as steel, aluminum, or other materials. This machine shapes the metal into desired profiles through a series of roll forming stations, creating precise and consistent door frames for various applications.
Key features of a metal door frame forming machine include:

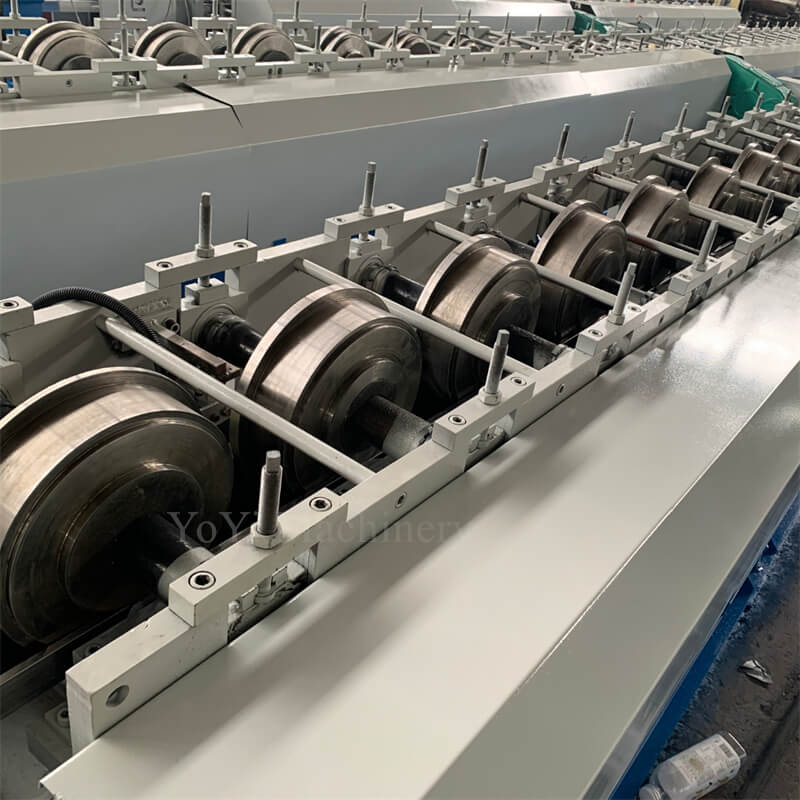

- Roll forming stations: The roll forming stations consist of a series of rollers arranged in a sequential order, each progressively shaping the metal into the desired profile. These rollers are typically made of high-quality materials, such as hardened steel, to ensure durability and precision.
- Uncoiler: The uncoiler holds and feeds the coil of sheet metal into the roll forming machine. It helps to maintain consistent tension and alignment of the metal as it passes through the roll forming stations.
- Drive system: The drive system, often comprising electric motors and gearboxes, powers the rollers and ensures the smooth operation of the machine. It may also include a variable speed control feature to adjust the production speed according to the specific requirements of the project.
- Control panel: The control panel allows operators to manage various aspects of the metal door frame forming machine, such as adjusting production speed, roller positions, and cutting lengths. Some machines also offer programmable options and automation features for enhanced productivity and ease of use.
- Cutting system: The cutting system, typically located at the end of the roll forming line, trims the formed metal door frame to the desired length. This system may use hydraulic or pneumatic shears, or a flying die cutter, depending on the machine model and the required level of precision.
- Safety features: Metal door frame forming machines often come with built-in safety features, such as emergency stop buttons, guards to protect the operator from moving parts, and safety interlocks that prevent the machine from operating when certain conditions are not met.
- Frame and structure: The machine’s frame and structure are built from robust materials, such as cast iron or steel, to ensure stability and rigidity during the production process. This helps to maintain accuracy and reduce vibrations that could impact the quality of the formed door frames.
When selecting a metal door frame forming machine, it is crucial to consider factors such as the type of metal being used, the size and shape of the door frames being produced, the required level of precision and consistency, the production speed, and the overall budget for the project. Additionally, operators should receive proper training and follow safety protocols to ensure safe and efficient operation of the equipment.
Основные технические параметры:
1) Sheet material: steel coils
2) Sheet thickness: 0.8mm-1.5mm
3) Feeding width: 200-380mm
4) Forming speed: 6-8 meters/min
5) Mold groups: 22 groups, 24 groups, 26groups, 28 groups
6) Motor power: 15-28KW
